Battery VED Series
Commercial Battery

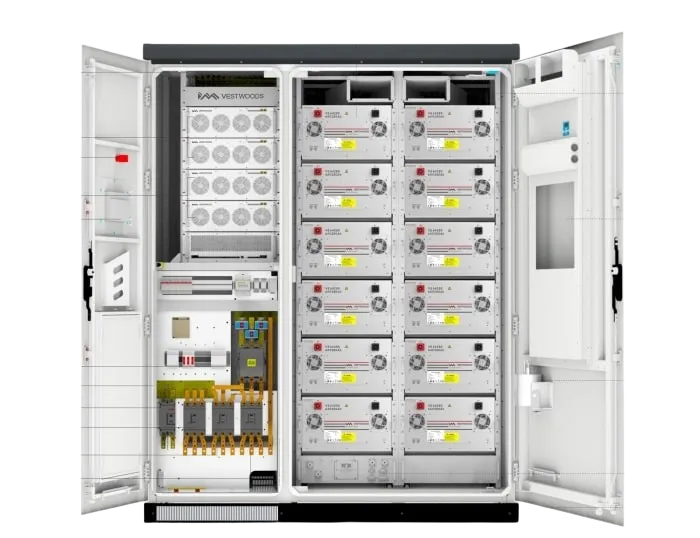

VED 100k-215kWh-F
- Price: 0 THB
quantity
product infomation
Advanced Commercial Battery Energy Storage Elevate your commercial operations with the VED 100k-215kWh-F, a premier choice in commercial battery energy storage systems designed to meet the diverse needs of today's businesses. This comprehensive, modular system delivers efficiency and adaptability, seamlessly transitioning between on-grid and off-grid environments.Delivery option
- fast shipping
- 5 Year Warranty
share
Optimize Your Energy Management:
- Reduce Costs with Peak Shaving: Lower energy expenses by managing consumption during peak times, minimizing demand charges for significant savings.
- Ensure Continuity with Backup Power: Maintain uninterrupted operations through reliable backup power, safeguarding productivity against outages.
- Swift Energy Transition: Experience seamless energy supply with a rapid 20ms switching capability, ensuring consistent power without disruptions.
- Monitor and Diagnose Effortlessly: Access real-time performance data and manage system health with our cloud-based monitoring and one-click diagnostics, simplifying maintenance.
- Durable and Robust: Our system boasts a lifecycle of up to 6000 cycles within an IP54-rated enclosure, guaranteeing longevity even in demanding settings.
Strategic Energy Solutions for Businesses:
The VED 100k-215kWh-F system is not just an energy storage unit but a strategic tool for peak shaving, providing backup power, and facilitating energy transitions. It's designed to integrate seamlessly into commercial settings, enhancing both security and environmental sustainability.
A Commitment to Sustainability and Efficiency:
Adopting the VED 100k-215kWh-F aligns your business with sustainable energy practices without sacrificing operational efficiency. This system supports a greener operational model, reducing carbon emissions while optimizing energy use and costs.
Transform your energy strategy with the VED 100k-215kWh-F commercial battery energy storage system. Discover how this solution can support your business's growth and sustainability goals by contacting us. Together, we can craft a future where energy efficiency and reliability are paramount.
| Model | VESS Plus-100k |
|---|---|
| AC Parameters | |
| Nominal Power | 100KW |
| AC Input/Output Voltage | 400V |
| AC Frequency | 50Hz/60Hz |
| Grid Type | 3W+N+PE / 3W+PE |
| Max. Efficiency | 97.3% (Peak) |
| Max. Load capacity | 110% (Continoues), 120(1 min) |
| PV Parameters | |
| Input Power | 100kW |
| MPPT Voltage Range | 200-650V (320-650V with Full load) |
| Max. Input Current | 320A |
| Battery Parameters | |
| Nominal Energy | 215kWh |
| VE64280 Battery Module Electrical Spec. | 64V/280AH/17.92kWh |
| VE64280 Battery Module Physical Spec. | 440*912*265mm (W*H*D)/132kg |
| Number of Battery Modules | 12 |
| Nominal Battery Voltage | 768V |
| Max.Charge/discharge Current | 140A/140A |
| Battery Certification | IEC62619, EN61000-6-2,4, UN38.3 |
| General Specification | |
| Thermal Management | Fan/Heat exchanger/Air conditioner |
| Noise | <70dB |
| IP Rating | IP54 |
| Operation Temp Range. | -20°C~60°C |
| Operation Ralative Humidity | 0°C~95'C (No condensation) |
| Altitude | <2000m |
| Weight | Approx.2800kg |
| Dimension | 1850*1200*H2300 (W*D*H)mm |
| Accessories | Smoke sensor, door sensor, water sensor,fire fighting.EPO |
| On/Off Grid Switch Time | 30ms |
| Communication | RS485/CAN/Lan/Dry contact |
| Galvanic isolation | Transformer (optional) |
| System Certificates | IEC63056, IEC62477-1, IEC62109-1/2, GB/T36276 |
